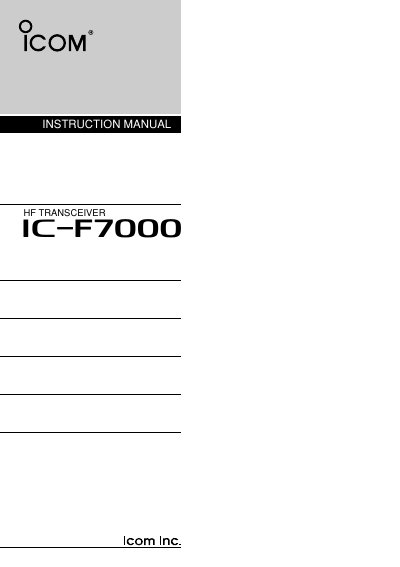

This instruction manual covers the features, operation, safety precautions, and installation of the ICOM IC-F7000 HF Transceiver.
This document serves as the official instruction manual for the ICOM IC-F7000 HF Transceiver. It provides comprehensive guidance on the device's features, including ALE/Selcall capability, DSP filter selection, and full-dot matrix LCD information. The manual details safety warnings regarding RF exposure, high voltage, and environmental conditions, as well as specific precautions for microphone usage and cleaning.
| Power Supply | 13.8 V DC |
|---|---|
| Antenna Connector | 50 Ω HF band |
| GPS Input Format | NMEA0183 ver. 2.0 or 3.01 |
| Remote Connector | RS-232C |
| Operating Temperature | -10°C to +60°C |
The available mute types are voice mute, signal level mute (level 1—100), call mute, or mute OFF.
Push the POWER KEY for 1 second to turn the power OFF.
The tuning circuit is bypassed automatically after 20 seconds.
