Electrocomponents EDP-CM-LPC1343 Command Module User Manual

EDP-CM-LPC1343 is the command module, which supports NXP series ARM/Cortex MCUs and comes with its own suite of software that can be fully used with RS-EDP application modules and MCU device peripherals.

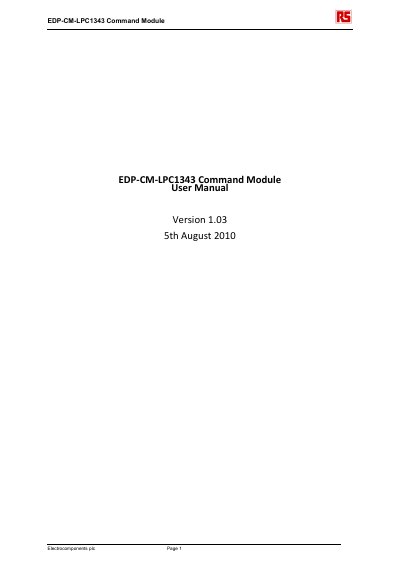

Electrocomponents EDP-CM-LPC1343 Command Module User Manual - cover page
Brand
Electrocomponents
Category
microcontrollers
Document type
User Manual
Language
English
Pages
25
File format
PDF
File size
2 MB
Published
15 October, 2023
Updated
15 October, 2023
MD5 checksum
B4A08C3752344CD4AB7CD70CACF5491B

About this manual

This manual describes the EDP-CM-LPC1343 Command Module, a system component designed to utilize NXP microprocessors, specifically the LPC1343 (Cortex M3). The module maps the I/O of the MCU on the board to the backplane of the RS-EDP system and dictates whether the system operates at 3.3V or 5.0V.

The document details the allocation of MCU pins to backplane functions, including JTAG interfaces, USB connections, and various GPIO and analog signals. It also covers solder link options and zero ohm links used to configure the module, along with information on the provided software test suites.

What's inside

  • Introduction
  • Pin Allocation
  • Solder Link Options
  • Zero Ohm Links
  • Software Support
  • Backplane - Base Board Signals

Frequently asked questions

What microprocessor types does the EDP-CM-LPC1343 Command Module support?

The module is designed to accommodate the LPC1343, which is a Cortex M3 device.

What voltage level does the Command Module dictate for the system?

The module dictates whether the whole system is a 3.3V one or a 5.0V one.

Which pins on the backplane are allocated for the JTAG interface?

Pins 28, 29, 32, 33, 34, and 35 are allocated for the JTAG interface on the LPC module.
