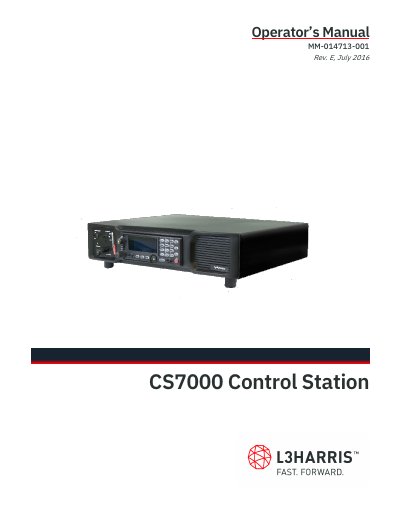

L3Harris CS7000 Control Station Operator's Manual

About this manual

The L3Harris CS7000 Control Stations are slimline devices designed to equip offices, shops, and other remote locations with radio communications. They support several models of mobile transceivers, including the M5300, XG-75M/M7300, and Unity XG-100M.

What's inside

• Safety Conventions
• General Description
• Controls and Connections
• Control Station Operation
• Remote Control Operation
• Intercom Operation

Frequently asked questions

Which mobile transceiver models are supported by the CS7000 Control Station?

The CS7000 Control Station may be equipped with an M5300, XG-75M/M7300, or a Unity XG-100M mobile transceiver.

What are the operational modes for the M5300 transceiver?

The M5300 transceiver is capable of OpenSky, EDACS, and Conventional modes of operation.

What are the operational modes for the XG-75M/M7300 transceiver?

The XG-75M/M7300 transceiver is capable of EDACS, Conventional, P25, and OpenSky modes of operation.
