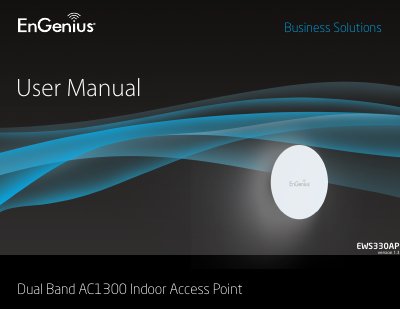

EnGenius EWS330AP Dual Band ACL 300 Indoor Access Point User Manual

EWS330AP is a wireless AP that supports dual-band 2.4 GHz and 5 GHz with a maximum speed of 1300Mbps. It supports AP mode and AP Mesh mode.

Brand: EnGenius
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 63
File format: PDF
File size: 6.7 MB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: EECCFA04FD1381753F177204AB95F4EC
PDF: EnGenius EWS330AP Dual Band ACL 300 Indoor Access Point User Manual PDF

About this manual

The EnGenius EWS330AP is a dual-band indoor access point featuring a Quad-core chipset and 2x2 MU-MIMO technology. It supports up to 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band, utilizing 802.11ac Wave 2.0 standards. The device includes high-powered amplifiers and 360° omni-directional antennas for comprehensive coverage.

What's inside

Product Overview
System Requirements
Package Contents
Technical Specifications
Computer Settings
Mounting the Access Point
Default Settings
Building a Wireless Network
Wireless Settings
Management and Advanced Settings

Specifications

Max Data Rate (5 GHz)	867 Mbps
Max Data Rate (2.4 GHz)	400 Mbps
Radio Technology	802.11b/g/n/ac
Antenna Type	360° omni-directional
Ethernet Ports	1x 10/100/1000 BASE-T RJ-45
Operating Temperature	0°C~40°C
Weight	179g

Frequently asked questions

How can the EWS330AP be mounted?

It can be mounted on a flat wall or assembled with a mounting bracket for drop ceiling installation.

What operating modes does the EWS330AP support?

The device supports AP Mode and Mesh AP Mode.
