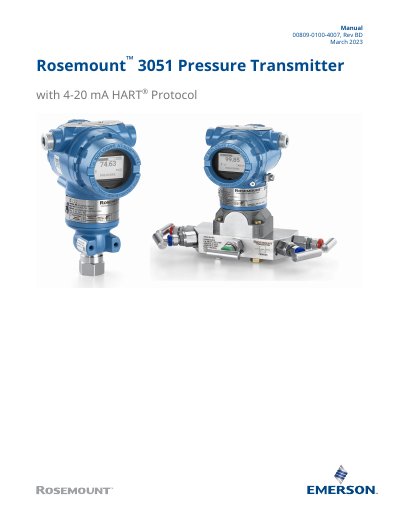

Rosemount 3051 Pressure Transmitter User Manual

About this manual

This document serves as a comprehensive user guide for the Rosemount 3051 family of pressure transmitters. It details various models including the Coplanar (3051C), In-Line (3051T), Liquid Level (3051L), and Flow Meter (3051CF) series, all utilizing the 4-20 mA HART protocol.

The guide provides step-by-step instructions for hardware installation, electrical connections, and configuration using tools like handheld communicators or Bluetooth. It also covers operational procedures, calibration tasks, troubleshooting diagnostic messages, and service support requirements.

What's inside

• Introduction
• Configuration Tools
• Hardware Installation
• Electrical Installation
• Operation and Maintenance
• Calibration Overview
• Troubleshooting
• Safety Instrumented Systems

Frequently asked questions

What pressure ranges do the Rosemount 3051C models measure?

The Rosemount 3051C Coplanar Pressure Transmitter measures differential and gauge pressure up to 2000 psi (137.9 bar) and absolute pressure up to 4000 psia (275.8 bar).

What is the maximum absolute pressure for the Rosemount 3051T?

The Rosemount 3051T In-Line Pressure Transmitter measures absolute pressure up to 20000 psi (1378.95 bar).

Which protocol is used by the Rosemount 3051 transmitters covered in this manual?

The transmitters covered in this manual utilize the 4-20 mA HART Protocol.
