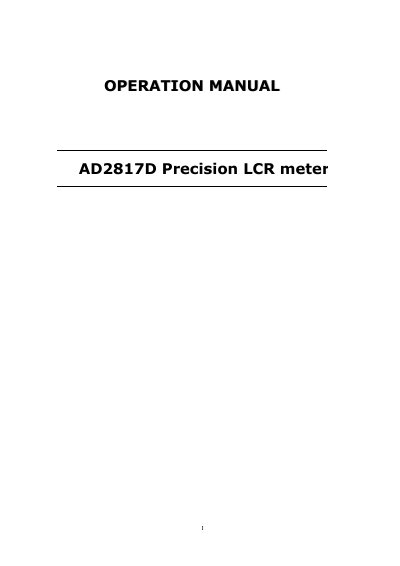

This document is the operation manual for the AD2817D Precision LCR meter, which introduces the appearance, functions, and operation methods of the instrument.
This document serves as the operation manual for the AD2817D Precision LCR Meter. It provides instructions for out-of-box audits, including inspecting the package, power connection, fuse usage, and environmental requirements. The manual details the instrument's front and rear panels, explaining the function of keys such as [MEAS DISP], [SYSTEM], and [SAVE], as well as the LCD display.
| Power consumption | ≤60VA |
|---|---|
| Dimensions | 350mm*120mm*360mm |
| Weight | About 3.5kg |
| Operating temperature | 0 ℃～40℃ |
| Relative humidity | ≤75% |
| Warm-up time | no less than 15min |
| Power supply voltage range | 99~243Vac |
| Power supply frequency range | 47~63Hz |
To guarantee accurate measurement, the warm-up time is no less than 15 minutes.
The normal working temperature is 0 ℃ to 40℃ with a relative humidity of 75% or less.
The instrument accepts a power-supplying voltage range of 99~243Vac.
