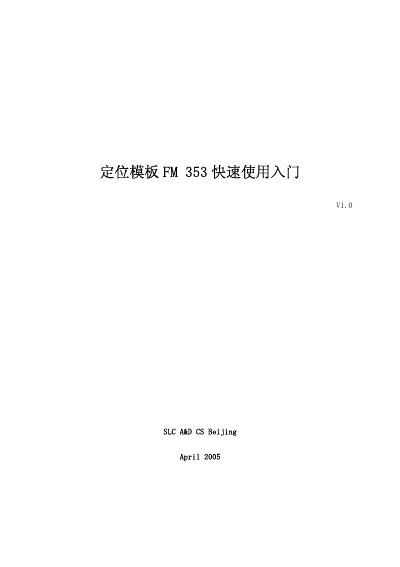

A&D FM353 Positioning Template Quick Start Guide

About this manual

This document serves as a quick start guide for users new to the A&D FM353 positioning template. It covers debugging steps and usage experiences but cannot replace the full "Manual FM353." Users are advised to read the complete manual after mastering the basic methods presented here to deepen their understanding. The guide assumes users have basic knowledge of STEP 7 software operation.

The document details the necessary software and hardware, including the FM353 module, FM STEPDRIVE, and SIMOSTEP motor. It explains the input/output points on interfaces X1 and X2, installation and wiring procedures, and the steps for configuring parameters using the "Parameterize FM 353 Tool." Finally, it outlines the preliminary debugging (Startup) process and provides an overview of programming the template using specific function blocks like FC0, FC1, FC2, and FC3. This manual is written in Chinese.

What's inside

• Template Overview
• Required Software and Hardware
• Input and Output Points
• Installation and Wiring
• Parameter Configuration
• Preliminary Debugging
• Program Compilation
• Function Blocks

Frequently asked questions

What types of axes can the FM353 module control?

The FM353 positioning module is used to control feed, adjustment, setting, and conveyor belt axes.

Which software version is required for programming the FM353?

Programming requires STEP7 software of V3.1 version or higher.

What voltage is supplied to terminals L+ and M on interface X1?

Terminals L+ and M provide a 24V power input for the template.
