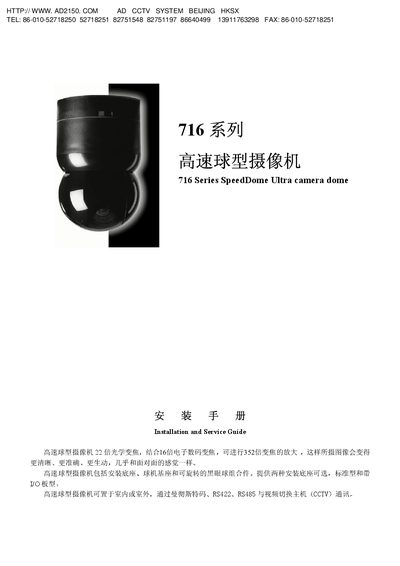

AD 716 Series Camera Dome Installation and Service Guide - cover page
Brand
716
Document type
Installation Guide
Language
English
Pages
20
File format
PDF
File size
459 KB
Updated
03 October, 2026
MD5 checksum
61E8517C3010F652E50917E43883EFDF
PDF
AD 716 Series Camera Dome Installation and Service Guide PDF

About this manual

The AD 716 Series SpeedDome Ultra is a high‑speed pan‑tilt camera dome with 22× optical zoom and up to 352× total magnification. It can be mounted indoors or outdoors and communicates via RS‑422, RS‑485, or Manchester protocols.

The guide details two base options (standard and I/O‑board), wiring standards for RS‑485/RS‑422/Manchester networks, power requirements, safety warnings, and a self‑test sequence after power‑on. Installation procedures for both indoor and outdoor mounting, including optional protective housings, are also covered.

What's inside

  • About the Camera
  • Indoor Installation Structure Selection
  • Outdoor Installation Structure Selection
  • Control Data Cable Requirements
  • Power‑On Self‑Test Process
  • Base Installation
  • Installation with I/O Board
  • Technical Specifications
  • Warnings and Precautions

Specifications

Optical zoom22×
Digital zoom8×
Power input voltage24~30VAC, 50/60Hz
Horizontal/Vertical speed1 ~ 100 °/s

Frequently asked questions

What is the required power input voltage for the camera?

The camera requires an input voltage of 24~30 VAC at 50/60 Hz.

What base options are available for mounting the camera?

Two base types are offered: a standard base and a base with an I/O board.
