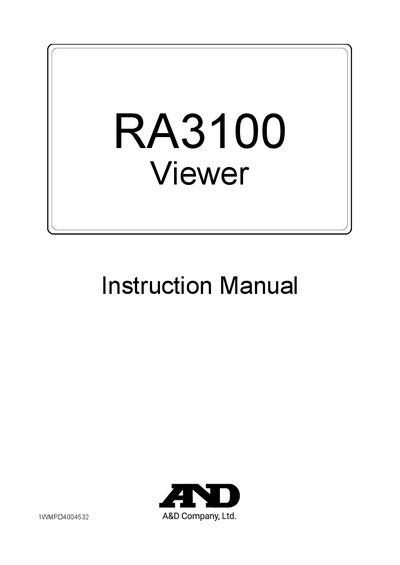

A&D RA3100 Viewer Instruction Manual

This manual provides instructions for installing and using the RA3100 Viewer software to display waveform data exported from the OMNIACE RA3100 data…

Brand: AD
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 1.3 MB
Published: 14 October, 2026
Updated: 14 October, 2026
MD5 checksum: 9400F9AAB2408DB1FA8803FB365A7ACE
PDF: A&D RA3100 Viewer Instruction Manual PDF

About this manual

The RA3100 Viewer is computer software designed to display waveforms of recorded data exported from the OMNIACE RA3100 data acquisition product to external media. This document covers system requirements, setup procedures, and installation methods for Windows 10 x64 environments.

What's inside

Introduction
Symbols in This Manual
Environment
System Requirements
Setup Method
Installation Method
Functions
Mouse Operations
Usage Method
Capturing and Printing Waveform Images

Specifications

Operating System	Windows 10 x64 (64-bit) (Ver1809 or later)
Memory Requirement	1 GB or more of free memory
Display Resolution	1280 x 1024 or higher

Frequently asked questions

What is the RA3100 Viewer used for?

It is computer software for displaying the waveforms of recorded data exported to external media from the OMNIACE RA3100 data acquisition product.

How do I change the waveform color in the viewer?

Click the CH button on the right side of the screen to display channel settings, select [Color], and then use the mouse wheel to change the value.

How can I capture the entire screen?

Press the Alt + PrintScreen keys with the RA3100 Viewer screen on top to copy the entire screen to the clipboard.
