The FP wireless system utilizes key wireless technology and components, providing a wide range of system configuration options and giving you the confidence to capture clear audio.

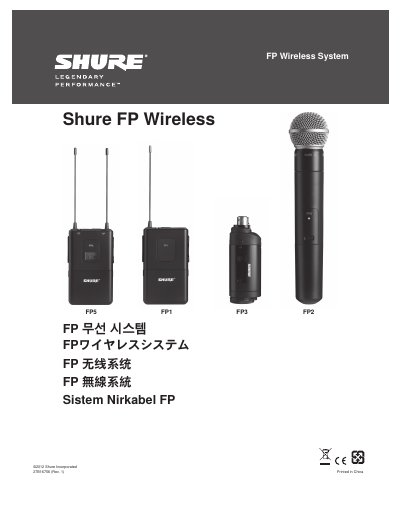

The Shure FP Wireless System is designed for electronic field production (EFP) and video recording environments. The system includes the FP1 bodypack transmitter, FP2 handheld transmitter, FP3 XLR transmitter, and FP5 portable receiver. It features automatic frequency selection and automatic transmitter setup to ensure clear audio quality and ease of use. This manual is written in Chinese.
| Operating Range (Line of Sight) | 100 meters (300 feet) |
|---|---|
| Audio Response | 45 to 15000 Hz (±2 dB) |
| Dynamic Range | >100 dB, A-weighted |
| Operating Temperature | -18°C (0°F) to +57°C (135°F) |
| Battery Life (FP1/FP2/FP5) | Max 11 hours (alkaline) |
| Battery Life (FP3) | Max 12 hours (alkaline) |
| RF Output Power | 10 to 30 mW (varies by region) |
Press and hold the scan button on the receiver for 3 seconds to perform a group scan and find an open frequency.
Align the infrared (IR) ports of the transmitter and receiver, then press the sync button on the transmitter.
The FP2 should generally be kept at 0dB, with -10dB used only for high SPL applications to prevent distortion.
