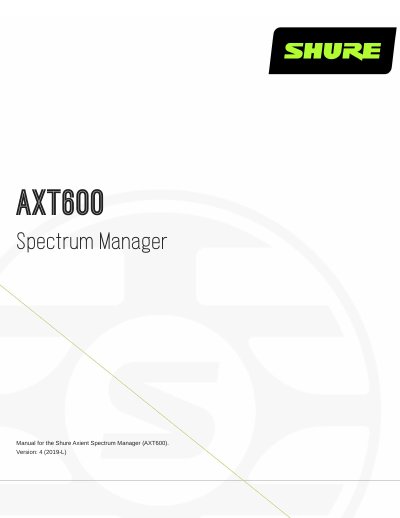

This manual provides instructions for the setup, operation, and maintenance of the Shure AXT600 Spectrum Manager, covering RF scanning, frequency…
The Shure AXT600 Spectrum Manager is a powerful tool designed to calculate, analyze, and assign compatible frequencies for wireless components. It scans the RF environment and uses the data to calculate compatible frequencies for all wireless channels found on the network. The device features a wideband scan across the UHF range and includes a Compatible Frequency List (CFL) that can be generated from Wireless Workbench 6. It allows for continuous monitoring of backup frequencies and can assign clear frequencies to receivers when interference occurs. The built-in spectrum tools provide visualization of RF activity and audio signal monitoring.
| RF Tuning Frequency Range | 470–865, 925 –952 MHz |
|---|---|
| RF Tuning Step Size | 25, 200, 1000 kHz |
| Background Noise Bandwidth Resolution | 25 kHz -110 dBm |
| Mirror Frequency Suppression | >110 dB, typical |
| Final Silence | >90 dB, A-weighted |
| Dimensions (H x W x D) | 44 mm x 483 mm x 366 mm |
| Weight | 5.5 kg (12.0 lbs) |
| Power Requirements | 100 to 240 V AC, 50–60 Hz |
| Operating Temperature Range | -18°C (0°F) to 63°C (145°F) |
Navigate to Util > More > Reset All in the menu and press enter to reset the device.
The CFL is a list of available frequencies that can be calculated, viewed, and edited via the Spectrum Manager to deploy clear frequencies.
Yes, the Ethernet ports support Power over Ethernet (PoE) to power ShowLink gateways and other Class 1 Ethernet devices.
