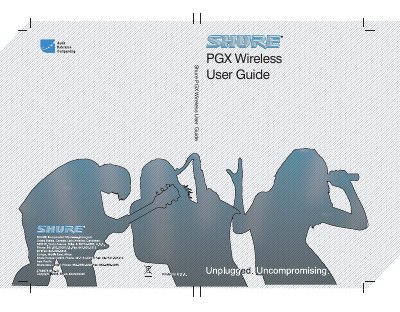

This user guide covers the setup, operation, and troubleshooting of the Shure PGX wireless system for vocalists, instrumentalists, and guitarists.
The Shure PGX Wireless System is designed for active musicians and performers who need to adjust their sound. It features automatic frequency selection and transmitter auto-setup to ensure clear audio quality using Shure's Audio Reference Companding technology. The system includes various configurations such as vocal systems with handheld or bodypack transmitters, and instrument systems. This manual is written in Chinese.
| Operating Range | 100 meters (300 feet) |
|---|---|
| Audio Frequency Response | +/- 2dB min: 45 Hz max: 15 kHz |
| Dynamic Range | >100 dB A-weighted |
| Operating Temperature | -18°C to +50°C (0°F to 122°F) |
| Transmitter Output Power | Max 30 mW |
A single alkaline battery is expected to provide approximately 8 hours of use.
It indicates that the infrared transmission is in progress or that there is low battery power depending on the timing.
