This document describes the features and performance of the 48i CO analyzer, including enhanced communication capabilities, large LCD display, user-defined soft key functionality, and remote downloading of analysis results. The analyzer uses gas filter correlation technology to detect CO concentration, with accurate linear output and optimized design.

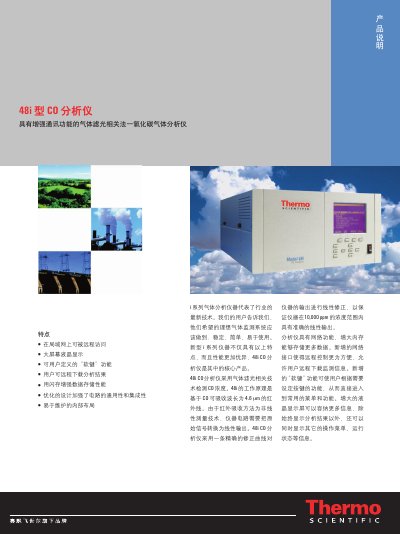

The Thermo Fisher Scientific 48i CO Analyzer is a gas filter correlation (GFC) instrument designed for carbon monoxide analysis. It features a large-screen LCD, user-defined soft keys, and flash memory for enhanced data storage. The device is optimized for stability and ease of use, with an internal layout designed for easy maintenance. This manual is written in Chinese.
| Optional Outputs | 0.20 or 4-20 mA isolated current output |
|---|---|
| Optional Inputs | 8 channels 0-10VDC analog input |
The lowest detection limit is 0.04 ppm.
The response time is 60 seconds with a 30-second average time.
The unit operates between 20C and 30C, though it may run safely between 0C and 45C.
