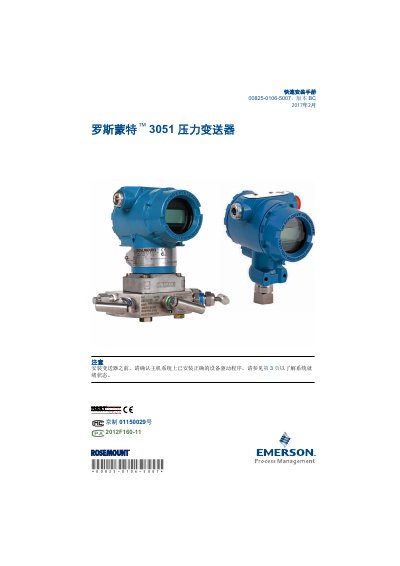

This document is a quick installation manual for the Rosemount 3051 pressure transmitter, which provides information on the installation, configuration, wiring, power supply, confirmation of configuration, and calibration of the transmitter.
This document serves as a quick installation guide for the Rosemount 3051 pressure transmitter. It covers essential steps including system readiness checks, physical installation of the transducer in various applications (liquid, gas, steam), switch configuration for alarms and safety, and wiring procedures.
The manual also includes instructions for confirming configuration, calibrating the device, and specific requirements for Safety Instrumented Systems (SIS) installation. It contains important warnings regarding hazardous environments, electrical shock risks, and process leaks. This manual is written in Chinese.
This transmitter can be configured for HART version 5 or 7.
The maximum recommended wire length is 5000 ft. (1500 m).
The standard entry is 1/2-14 NPT, while those marked 'M20' use M20 x 1.5 threads.
