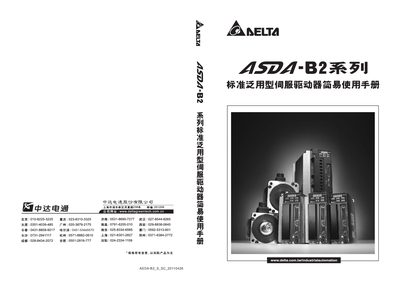

This manual provides detailed information for the Delta ASDA‑B2 series servo drive. It includes inspection procedures, technical specifications, wiring diagrams, parameter settings, and fault‑diagnosis instructions.
The document is organized into chapters that guide users through installation, configuration, and maintenance, with tables of pin layouts, connection standards, and step‑by‑step troubleshooting methods. This manual is written in Chinese.
| Model | ASD-B2-0421-B |
|---|---|
| Power Rating | 400W |
| Input Voltage (3‑phase) | 200‑230V 50/60Hz |
| Input Current (3‑phase) | 1.86A |
| Input Voltage (single‑phase) | 200‑230V 50/60Hz |
| Input Current (single‑phase) | 3.22A |
| Output Voltage | 110V |
| Output Frequency Range | 0‑250 Hz |
| Output Current | 2.6A |
The ASDA‑B2 servo drive is rated at 400 W.
It requires 200‑230 V at 50/60 Hz with a current of 1.86 A.
The output is 110 V with a frequency range of 0‑250 Hz and a current of 2.6 A.
