PD-01 is a PROFIBUS communication module from Delta that is used to connect VFD series drives to the PROFIBUS-DP network and provide power to the VFD.

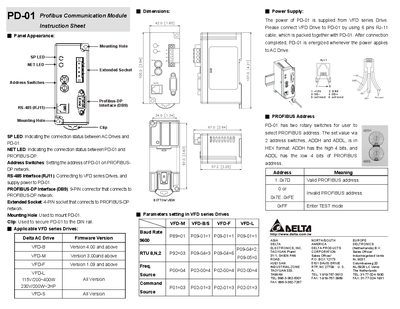

The guide describes the PD-01 Profibus Communication Module’s panel appearance, including the PROFIBUS‑DP (DB9) connector, RS‑485 (RJ11) interface, LEDs, address switches and mounting options. It lists the Delta VFD series that can be connected and provides the wiring diagram for power and communication.
Instructions detail how to set the module’s PROFIBUS address using the ADDH and ADDL rotary switches, configure communication parameters in the VFD, and power the module from the drive via a 6‑pin RJ11 cable. Contact information for Delta’s regional offices is also included. This manual is written in Chinese.
| Baud Rate | 9600 |
|---|---|
| PROFIBUS address range | 1..0x7D valid |
| Power supply pins | +15V, GND, SG-, SG+ |
| PROFIBUS‑DP interface | DB9 connector |
