This file is a gas burner installation, use and maintenance manual, mainly introducing the technical parameters, variant burner heads, LPG components, burner description, packaging-weight, maximum size, standard accessories, combustion output, test boilers, commercial boilers, gas pressure and other contents

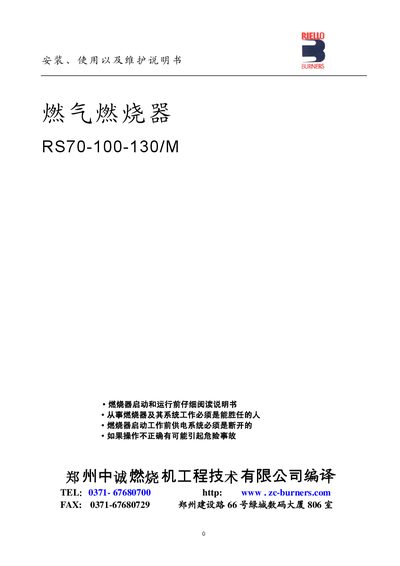

This manual provides step‑by‑step instructions for installing, commissioning and maintaining the Zhengcheng RS70‑100‑130/M gas burner. It covers technical parameters, component descriptions, wiring, gas‑line setup, adjustment of the burner head, and safety precautions.
The document also includes detailed troubleshooting tables, fault codes, and recommended corrective actions, helping technicians keep the burner running safely and efficiently in boiler applications. This manual is written in Chinese.
| Output power (RS70) | 135 kW |
|---|---|
| Fuel type | 天然气 (natural gas) |
| Supply voltage | 230 V ±10% |
| Maximum gas pressure switch | 最高燃气压力开关 |
The burner operates in a gap‑type mode and must be stopped at least once every 24 hours.
Press the illuminated button on the control box to reset it.
At maximum load the RS100/M requires a gas pressure of about 5 mbar (plus boiler pressure).
