Start here

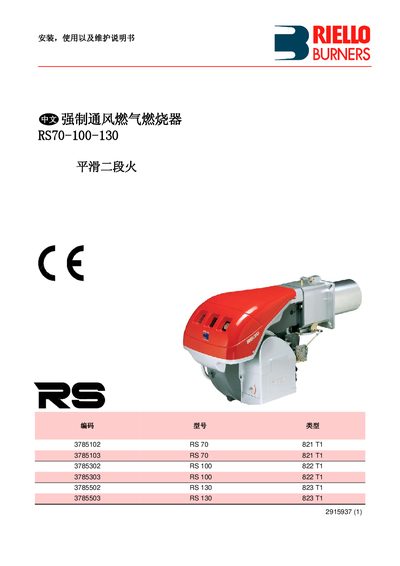

Riello RS70-100-130 Forced Ventilation Gas Burner Manual
This manual provides the complete set of instructions for installing, commissioning, operating and maintaining the RS70‑100‑130 forced‑ventilation gas burner. It includes technical parameters, component descriptions, wiring diagrams, adjustment procedures and safety checks.
The document also covers troubleshooting, control‑box diagnostics, and optional accessories such as gas‑valve groups and status panels, helping technicians keep the burner running reliably in industrial boiler applications. This manual is written in Chinese.
Riello RS70-100-130 specifications
| Maximum output power (RS70) | 465‑814 kW |
|---|---|
| Minimum output power (RS70) | 192 kW |
| Fuel type | Natural gas (G20‑G25) |
| Electrical supply | 230‑400 V, three‑phase |
| Maximum gas‑pressure during full load | 10.3 mbar (RS70) |
Source: Riello RS70-100-130 Forced Ventilation Gas Burner Manual
All Riello RS70-100-130 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the minimum gas pressure required for the RS100 model?
The minimum gas pressure for the RS100 model is 5 mbar.
From: Riello RS70-100-130 Forced Ventilation Gas Burner Manual
How do I reset the control box after a fault?
Press and hold the reset button for 1‑3 seconds, then release; the burner will restart after a short pause.
From: Riello RS70-100-130 Forced Ventilation Gas Burner Manual
How often must the burner be shut down in a 24‑hour period?
The burner operates in a gap‑type mode and must be stopped at least once every 24 hours.
From: Zhengcheng RS70-100-130/M Gas Burner Installation and Maintenance Manual
What should be done if the control box is locked?
Press the illuminated button on the control box to reset it.
From: Zhengcheng RS70-100-130/M Gas Burner Installation and Maintenance Manual
