Riello GS3 Gas Burner Maintenance Manual

This manual introduces the technical parameters, installation methods, use methods and maintenance methods of the burner

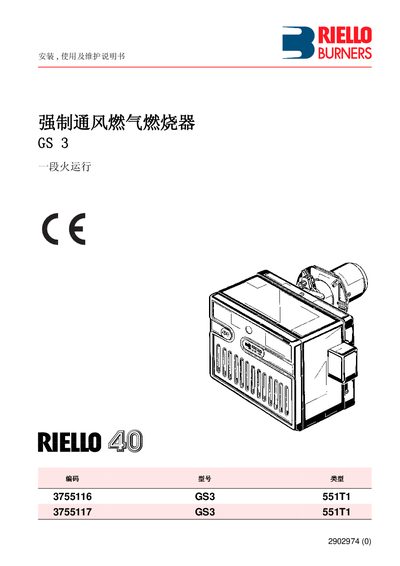

Riello GS3 Gas Burner Maintenance Manual - cover page
Brand
Riello
Category
Industrial Supply
Document type
Service Manual
Language
Chinese
Pages
10
File format
PDF
File size
236 KB
Published
10 December, 2011
Updated
30 September, 2023
MD5 checksum
DCC30CE4307D6F1980FAF49299E997CA
PDF
Riello GS3 Gas Burner Maintenance Manual PDF

About this manual

This manual provides detailed instructions for installing, wiring, and commissioning the Riello GS3 forced‑ventilation gas burner. It includes technical parameters, dimensions, gas‑line connections, and safety precautions required for proper setup.

The document also covers adjustment procedures, troubleshooting of startup faults, and routine maintenance steps such as cleaning, valve checks, and ion‑probe verification to ensure reliable long‑term operation. This manual is written in Chinese.

What's inside

  • Technical Parameters
  • Dimensions and Accessories
  • Operating Range
  • Gas Pipeline and Valve Group
  • Electrical Connections
  • Air‑door Adjustment
  • Combustor Tuning
  • Startup Fault Diagnosis
  • Maintenance and Safety

Specifications

Combustor output11 – 35 kW
Power supplySingle‑phase 230V ±10% ~ 50Hz
Motor current0.6 A
Ignition transformer primary current0.2 A
Gas pressure range10 – 35 mbar
Download PDF (236 KB)
