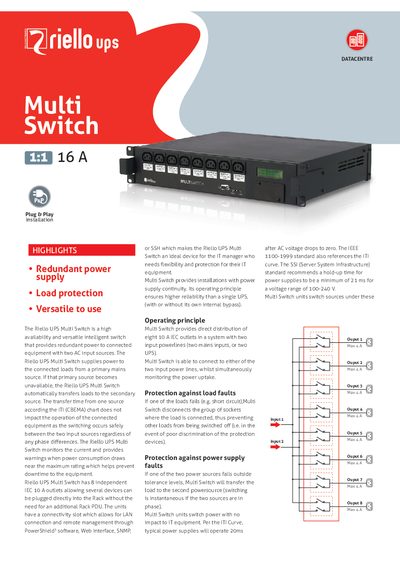

The Riello UPS Multi Switch 16 A provides redundant power with 8 IEC outlets, load protection and remote management.
The Riello UPS Multi Switch 16 A is a high‑availability intelligent switch that supplies power from two AC inputs and automatically transfers loads if the primary source fails. It features eight independent IEC 10 A outlets, a built‑in LCD panel and a slot for optional communication cards.
The unit supports remote management via PowerShield 3 software, web interface, SNMP or SSH, and complies with EN 62310‑1/2 safety and EMC standards. It is designed for 19‑inch rack installation and can operate in a wide temperature and humidity range.
| Nominal voltage | 230 Vac single‑phase + N |
|---|---|
| Input voltage tolerance | 180‑276 Vac (selectable) |
| Nominal frequency | 50/60 Hz |
| Input sockets | 2 IEC 320 (16 A) |
| Output sockets | 8 IEC 320 10 A |
| Transfer type | Break Before Make |
| Transfer time (unsynchronised) | 20 ms |
| Maximum load per output | 4 A |
| Efficiency at full load | > 99 % |
| Noise (1 m, full load) | < 35 dBA |
| Storage temperature | -10 °C to +50 °C |
| Operating temperature | - °C to 40 °C |
| Relative humidity | 90 % non‑condensing |
| Maximum installation height | 1000 m (up to 4000 m) |
| Weight | 10 kg |
| Dimensions (W×D×H) | 19" × 360 mm × 2U |
| Colour | RAL 5004 |
| IP rating | IP 20 |
| Communications interface | RS232, Ethernet (optional) |
The transfer time can be up to 20 ms when the sources are not synchronized.
Yes, it can be managed via PowerShield 3 software, a web interface, SNMP or SSH.
Each output can carry up to 4 A.
