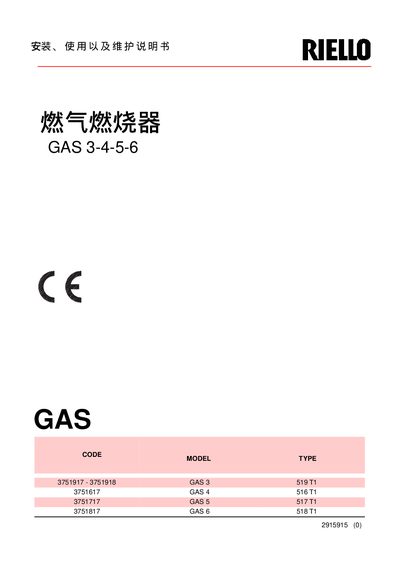

This manual introduces the installation, use and maintenance of gas burner GAS 3-4-5-6
The manual covers the complete installation procedure, including mounting the burner, connecting fuel and air lines, and securing the unit. Detailed diagrams show component parts, dimensions, and weight for each GAS model.
Calibration steps, performance specifications, and a fault‑table are provided to help technicians set ignition power, verify output, and diagnose common problems. Safety warnings and ambient‑condition limits are also included. This manual is written in Chinese.
| Output (kW) | 130‑350 (GAS 3), 185‑465 (GAS 4), 325‑660 (GAS 5), 525‑1050 (GAS 6) |
|---|---|
| Fuel flow (m³/h) | 112‑301 (GAS 3), 160‑400 (GAS 4), 280‑570 (GAS 5), 450‑900 (GAS 6) |
| Fuel type | Natural gas (天然気) |
| Energy consumption (kWh/Nm) | 10 (GAS 3,5,6), 8.6 (GAS 4) |
| Mca1 (Nm) | 8.6 (GAS 3,5,6), 7.4 (GAS 4) |
| Density (kg/Nm) | 6.71 kg/Nm (GAS 3), 0.78 kg/Nm (others) |
| Maximum output (Nm/h) | 35‑54 (GAS 3‑6) |
| Maximum pressure (mbar) | 11.1‑14.5 mbar (varies by model) |
| Ambient temperature range | 0 °C – 40 °C |
The GAS 4 can deliver up to 185‑465 kW of output power.
Calibration is performed by adjusting the “点火輸出功率” setting as described in the manual.
The unit may operate in ambient temperatures from 0 °C to 40 °C.
