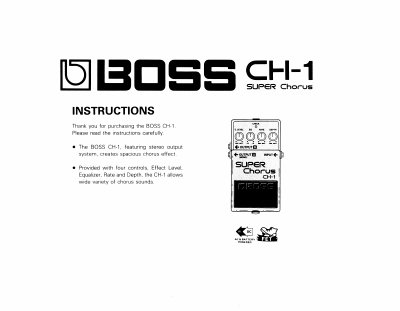

This manual provides instructions for the BOSS CH-1 Super Chorus effect pedal, which features a stereo output system and four controls: Effect Level, Equalizer, Rate, and Depth. The device creates a spacious chorus effect suitable for electric and electronic musical instruments like guitars.
The guide details how to connect the unit to an amplifier and instrument, explains the function of each knob and jack, and describes the stereo output configuration. It also includes specific instructions for battery replacement, AC adaptor usage, and important safety notes regarding interference and maintenance.
| Power | 9V DC 006P (x 1), AC adaptor (PSA series: optional) |
|---|---|
| Current Draw | 15mA (9V DC) |
| Controls | Effect Level, Equalizer, Modulation Rate, Modulation Depth |
| Jacks | Input, Output A, Output B, AC Adaptor |
| Input Impedance | 1MQ |
| Output Load Impedance | Over 10k0 |
| Dimensions | 70(W) x 55(H) x 125(D) mm |
| Weight | 400g/14 oz |
A manganese battery lasts about 20 hours.
When the Check indicator becomes dimmer or does not light at all, battery replacement is required.
The compatible AC adaptors are the BOSS PSA-120, 220, or 240.
