BOSS CL-50 Compressor Limiter Owner's Manual

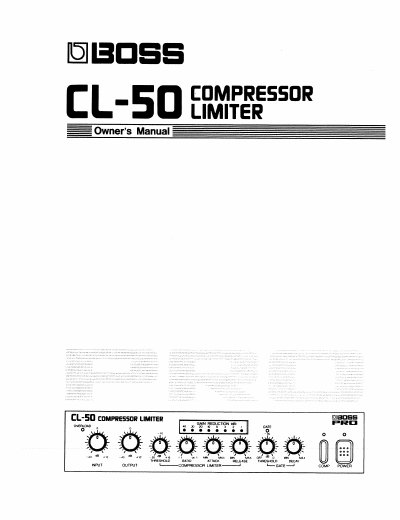

BOSS CL-50 Compressor Limiter Owner's Manual - cover page
Brand
BOSS
Category
Other Electronics
Document type
User Manual
Language
English
Pages
16
File format
PDF
File size
575 KB
Published
10 August, 2012
Updated
31 August, 2012
MD5 checksum
190F6C955763915D091C820D7AEE4D91

About this manual

The BOSS CL-50 is a high-performance dynamic processor that combines compressor, limiter, and gate functions. It features a superior VCA for low distortion and includes Gain Reduction Indicators to confirm operating status. The unit adapts to various applications through a Detector In Jack and Stereo Link Jack, and can be rack-mounted using the optional RAD-50 adaptor.

What's inside

  • Features
  • Important Notes
  • What the CL-50 Can Do
  • Making Connections
  • Panel Descriptions
  • Front Panel
  • Rear Panel

Specifications

FunctionCompressor, Limiter, Gate

Frequently asked questions

What does the Overload Indicator light indicate?

It lights when the input signal is too high, specifically 6dB prior to the clipping point.

How do you disable the Gate function?

Set the Gate Threshold Knob to the 'OFF' position.

What is the purpose of the Stereo Link Jack?

It allows two CL-50 units to be synchronized for identical response.
