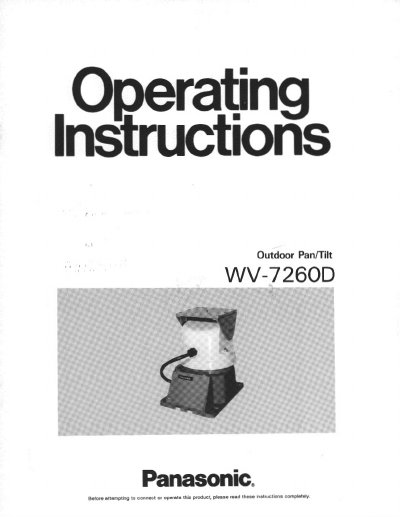

This document provides operating instructions for the Panasonic WV-7260D heavy duty outdoor Pan/Tilt unit. It is designed to operate with the System Controller WV-CU254 and allows for remote control of camera panning and tilting. The unit can be mounted directly on a flat surface and supports various outdoor camera housings.
The manual details precautions for use, such as operating within the ambient temperature range of -20°C to +50°C and ensuring proper mounting orientation. It includes step-by-step guides for installation, connecting the outdoor receiver WV-RC150, and adjusting pan and tilt limit stops. Technical specifications and wiring diagrams for compatible camera models are also provided.
| Panning Angle | 10° - 340° |
|---|---|
| Panning Speed | 7.2° /second |
| Tilting Angle Up | up 15° |
| Tilting Angle Down | down 60° |
| Tilting Speed | 3.6° /second |
| Ambient Temperature | -20°C - +50°C |
No, the unit has been assembled for upright mounting and is not protected from rain if mounted inverted.
The system should be operated with a power consumption of less than 11W for the camera.
It is designed to mount with outdoor camera housing such as Model WV-7135, 7140, 7160D, or 7150D.
