Featured video output amplifier manuals

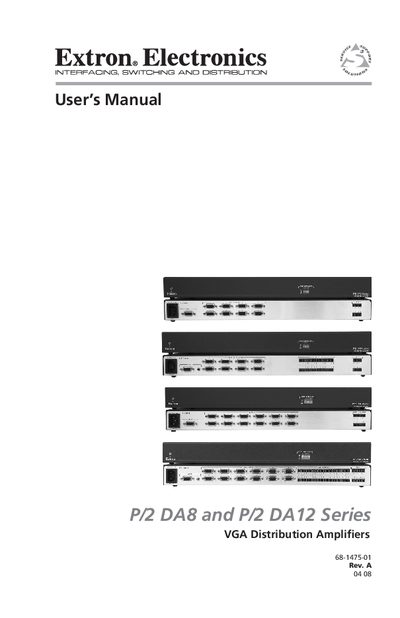

Extron P/2 DA8 and P/2 DA12 VGA Distribution Amplifier User Manual
This manual provides all the information needed to install, mount, and operate the Extron P/2 DA8 and P/2 DA12 series VGA distribution amplifiers. It includes safety instructions, front‑ and rear‑panel descriptions, wiring details, and troubleshooting guidance.
The document also lists the technical specifications, included parts, optional accessories, and warranty information for both the video‑only and audio‑capable models.
Covers: Introduction · Installation Overview · Mounting · Front Panel Features · Rear Panel Features · Operation
Latest video output amplifier manuals
NXP TDA6107AJF video output amplifier
The TDA6107AJF contains three video output amplifiers which are intended to drive the three cathodes of a color CRT. The device is contained in a plastic DIL-bent-SIL 9-pin medium power (DBS9MPF) package, and uses high-voltage DMOS technology. To obtain maximum performance, the amplifier should be used with black-current control.
Extron P/2 DA8 and P/2 DA12 VGA Distribution Amplifier User Manual
User Manual 32 pages · 1.3 MB · ENUser manual for Extron P/2 DA8/DA12 VGA distribution amplifiers covering installation, operation, and specifications.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in video output amplifier manuals
What is the highest video resolution supported by these amplifiers?
They support video resolutions up to QXGA (2048 × 1536).
From: Extron P/2 DA8 and P/2 DA12 VGA Distribution Amplifier User Manual
What is the maximum cable length for extending an XGA signal?
An XGA signal can be extended up to 150 ft using Extron mini high‑resolution cable.
From: Extron P/2 DA8 and P/2 DA12 VGA Distribution Amplifier User Manual
