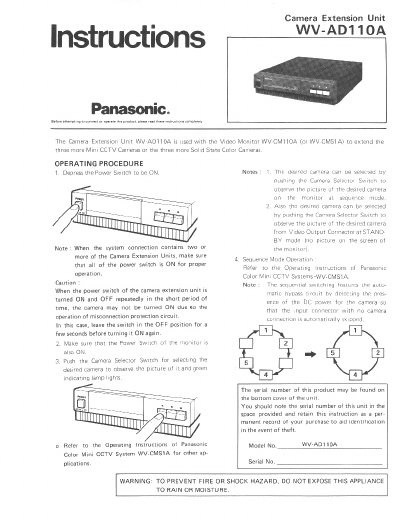

Panasonic WV-AD110A Camera Extension Unit Operating Instructions

About this manual

This manual provides operating procedures for the Panasonic WV-AD110A Camera Extension Unit. It details how to turn the unit on and off, select cameras using the selector switch, and connect the unit to compatible monitors and cameras. The document includes specific cautions regarding power cycling and misconnection protection circuits.

What's inside

• OPERATING PROCEDURE
• CONNECTIONS
• BASIC SYSTEM
• Cautions for Intercomes and Alarm Sensors/Switches
• CAMERA NUMBER LABEL
• SPECIFICATIONS

Frequently asked questions

What happens if the power switch is turned on and off repeatedly?

The camera may not turn on due to the operation of the misconnection protection circuit.

How many cameras can be extended using one Camera Extension Unit?

The cameras can be extended up to 6 units by using one Camera Extension Unit.

What is the maximum power capacity for an alarm connected to the Remote Out?

The power capacity of the alarm should be DC 24V, max. 100mA.
