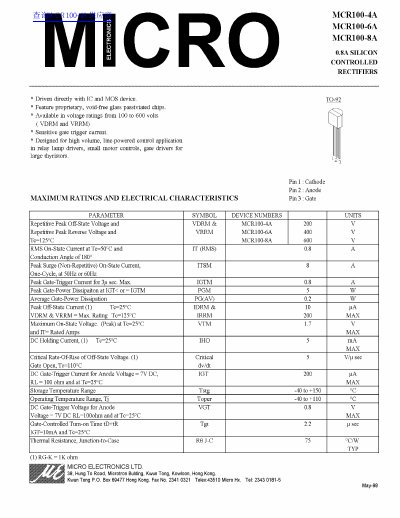

This document is a datasheet for the Micro MCR100 series of Silicon Controlled Rectifiers (SCRs). The devices are available in voltage ratings from 100 to 600 volts and are designed for high-volume, line-powered control applications such as relay lamp drivers and small motor controls. They feature proprietary, void-free glass passivated chips and are driven directly with 1C and MOS devices.
| Peak Surge On-State Current | 8 A |
|---|---|
| Peak Gate-Trigger Current | 0.8 A |
| Thermal Resistance Junction-to-Case | 75 °C/W |
| Operating Temperature Range | -40 to +110 °C |
The devices are available in voltage ratings from 100 to 600 volts.
They are designed for relay lamp drivers, small motor controls, and gate drivers for large thyristors.
