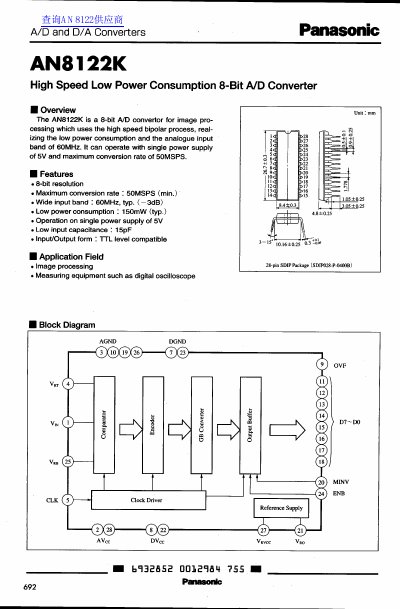

The Panasonic AN8122K is an 8-bit analog-to-digital (A/D) converter designed for image processing applications. It utilizes a high-speed bipolar process to achieve a maximum conversion rate of 50 MSPS with a wide input bandwidth of 60 MHz. The device operates on a single 5V power supply and is available in a 28-pin SDIP package.
| Input band | 60 MHz |
|---|---|
| Power consumption | 150mW |
| Supply voltage | 5V |
| Input capacitance | 15pF |
| Package | 28-pin SDIP |
The device operates on a single power supply of 5V.
The typical input bandwidth is 60 MHz.
