AN8140K is a 10-bit D/A converter with 10-bit resolution, high conversion rate, low power consumption, TTL compatible input level, single 5V power supply, and built-in reference power supply. It is suitable for high-definition devices, image scanners and other OA devices, and digital oscilloscopes.

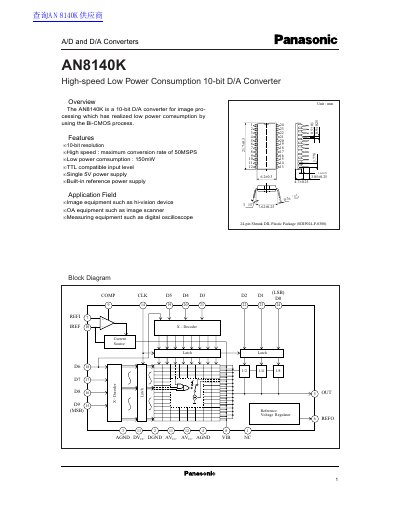

The Panasonic AN8140K is a 10-bit Digital-to-Analog (D/A) converter designed for image processing applications. It utilizes a Bi-CMOS process to achieve low power consumption while maintaining high speed with a maximum conversion rate of 50 MSPS. The device operates from a single 5V power supply and includes a built-in reference power supply.
| Resolution | 10 bit |
|---|---|
| Package type | 24-pin Shrunk DIL Plastic Package (SDIP024-P-0300) |
The maximum conversion rate is 50 MSPS when the reference voltage difference is 1.4V.
The supply current is typically 30 mA and can reach a maximum of 50 mA.
The settling time is 20 ns.
