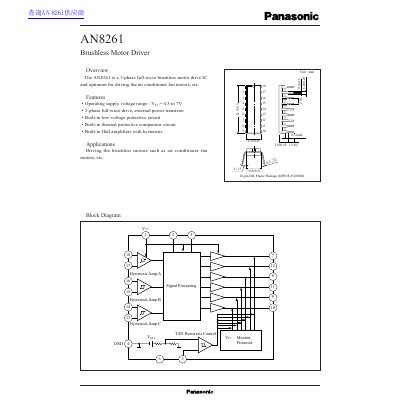

The AN8261 is a 3-phase full-wave brushless motor drive IC, ideal for driving air conditioner fan motors and other applications. Its features include an operating supply voltage range of 4.5 to 7V, 3-phase full-wave drive with an external power transistor, built-in low-voltage protective circuit, built-in thermal protective comparator circuit, and built-in Hall amplifiers with hysteresis. It is suitable for driving brushless motors such as air conditioner fan motors.
The AN8261 is a 3-phase full-wave brushless motor drive IC designed specifically for driving air conditioner fan motors and similar applications. It features an operating supply voltage range of 4.5V to 7V and includes built-in protective circuits for low voltage and thermal conditions.
| Supply voltage range | 4.5V to 7V |
|---|---|
| Supply current (typical) | 56 mA |
| Operating ambient temperature | -20 to + 80 C |
| Storage temperature | -55 to +150 C |
| Output drive current | -7 to + 25 mA |
It is optimum for driving air conditioner fan motors.
The AN8261 is a 3-phase full-wave brushless motor drive IC intended for driving air conditioner fan motors.
The operating supply voltage range is 4.5V to 7V.
The maximum operating ambient temperature is 80°C.
