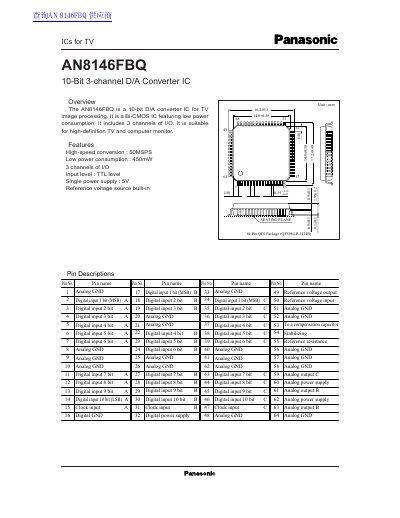

The AN8146FBQ is a 10-bit D/A converter IC for TV image processing. It is a Bi-CMOS IC featuring low power consumption. It includes 3 channels of I/O. It is suitable for high-definition TV and computer monitor.
The document describes the AN8146FBQ, a Bi-CMOS integrated circuit functioning as a 10-bit Digital-to-Analog (D/A) converter with three independent channels. It is specifically engineered for use in high-definition television and computer monitor applications, featuring low power consumption of 450mW and a conversion speed of up to 50 MSPS.
| Resolution | 10-bit |
|---|---|
| Channels | 3 channels of I/O |
| Supply Voltage | 5V (Single) |
| Maximum Conversion Rate | 50 MSPS |
| Power Dissipation | 450mW |
The device features a 10-bit resolution.
It includes 3 channels of I/O for image processing.
The single power supply voltage is 5V.
