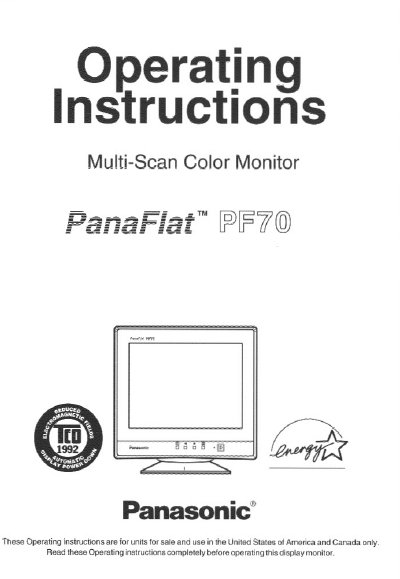

Panasonic PF70 Multi-Scan Color Monitor Operating Instructions

About this manual

This document provides operating instructions for the Panasonic PF70 Multi-Scan Color Monitor. It includes important safety notices regarding power cord selection for various regions (US/Canada, Europe), as well as general warnings about electrical shock and fire hazards.

The manual details the installation process, including pin assignments and external views of the monitor. It also covers on-screen adjustments, operation procedures, a Power Management System, memory functions, timing specifications, and troubleshooting steps for common issues.

What's inside

• Important Notice Concerning Power Cord Selection
• Federal Communications Commission Requirements
• CE Conformity
• Precautions (Installation, Usage, Product Care)
• Features
• Specifications
• Installation and Pin Assignment
• On-Screen Adjustment
• Operation and Power Management System
• Trouble Shooting

Specifications

Frequently asked questions

What type of power cord is required for the Panasonic PF70 monitor in the United States and Canada?

For units mounted on a desk or table, you may use SVT or SJT cord sets, while floor-standing units require only SJT type cord sets.

What is the maximum current rating for a Panasonic PF70 monitor using an 18AWG SJT power cord?

The unit can handle a maximum current of 10Amps when using an 18AWG SJT cord.

What specific power cord requirements must be met for the Panasonic PF70 monitor in Europe?

The cord set must be HAR-Certified and display the mark HARP on the outer sheath or inner conductor insulation.
