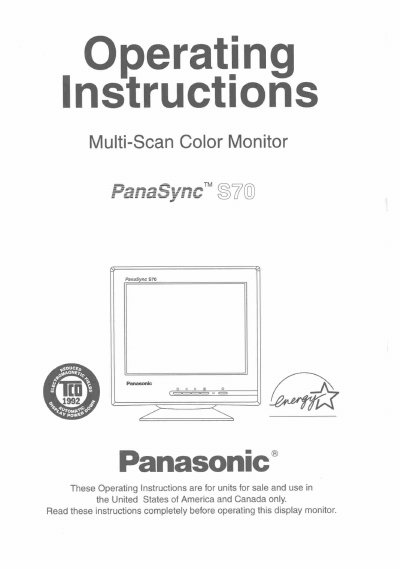

Panasonic S70 Multi-Scan Color Monitor Operating Instructions

About this manual

This document provides operating instructions for the Panasonic S70 Multi-Scan Color Monitor. It includes important notices regarding power cord selection for various regions (US/Canada, Europe), safety warnings, and FCC compliance information.

The manual details the features of the monitor, including its on-screen adjustment capabilities and Power Management System. It also covers installation procedures, pin assignments, external view descriptions, timing specifications, memory functions, and a troubleshooting guide.

What's inside

• Important Notice Concerning Power Cord Selection
• Federal Communications Commission Requirements
• CE Conformity
• Precautions 1) Installation
• Features
• Specifications
• Installation
• Pin Assignment
• On-Screen Adjust
• Trouble Shooting

Specifications

Frequently asked questions

What type of power cord is required for the US and Canada?

For units mounted on a desk or table, type SVT or SJT cord sets may be used. For units which sit on the floor, only SJT type cord sets may be used.

What certification mark must appear on power cords for European countries?

The cord set must be HAR-Certified and have the mark 'HAR P' appear on the outer sheath or insulation.
