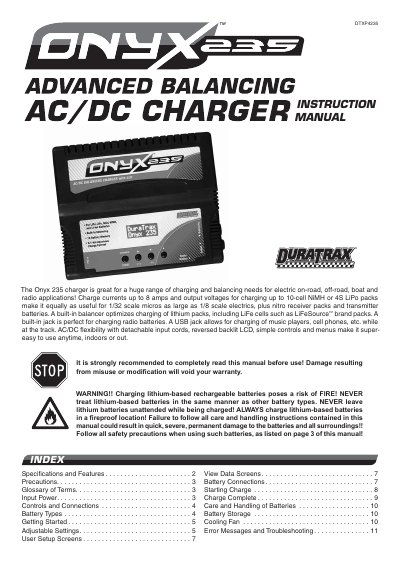

The Onyx 235 charger is great for a huge range of charging and balancing needs for electric on-road, off-road, boat and radio applications! Charge currents up to 8 amps and output voltages for charging up to 10-cell NiMH or 4S LiPo packs make it equally as useful for 1/32 scale micros as large as 1/8 scale electrics, plus nitro receiver packs and transmitter batteries. A built-in balancer optimizes charging of lithium packs, including LiFe cells such as LiFeSource™ brand packs. A built-in jack is perfect for charging radio batteries. A USB jack allows for charging of music players, cell phones, etc. while at the track. AC/DC fl exibility with detachable input cords, reversed backlit LCD, simple controls and menus make it super- easy to use anytime, indoors or out. It is strongly recommended to completely read this manual before use! Damage resulting from misuse or modifi cation will void your warranty. WARNING!! Charging lithium-based rechargeable batteries poses a risk of FIRE! NEVER treat lithium-based batteries in the same manner as other battery types. NEVER leave lithium batteries unattended while being charged! ALWAYS charge lithium-based batteries in a fi reproof location! Failure to follow all care and handling instructions contained in this manual could result in quick, severe, permanent damage to the batteries and all surroundings!! Follow all safety precautions when using such batteries, as listed on page 3 of this manual!
The DuraTrax Onyx 235 is a versatile battery charger designed for electric on-road, off-road, boat, and radio applications. It supports charge currents up to 8 amps and can charge NiCd, NiMH, LiPo, Li-Ion, and LiFe batteries. The device features a built-in balancer for lithium packs, a radio battery jack, and a USB jack for charging mobile devices.
| AC Input | 110V AC 60Hz – 240V 50Hz |
|---|---|
| DC Input | 11– 15V DC |
| Max Charge Current | 8.0A |
| NiMH/NiCd Capacity Range | 50-9900mAh |
| Lithium Balancing Accuracy | 5mV per cell |
| USB Output | 5V, 500mA |
| Max Output Power | 70 watts |
It charges 1–10 NiCd or NiMH packs and 1–4 LiPo, Li-Ion, or LiFe packs.
Multiply the number of cells by 1.20 for NiMH/NiCd, 3.70 for LiPo, 3.60 for Li-Ion, or 3.30 for LiFe.
The charger has a 4C limit for lithiums, or a 5A limit when using AC input.
