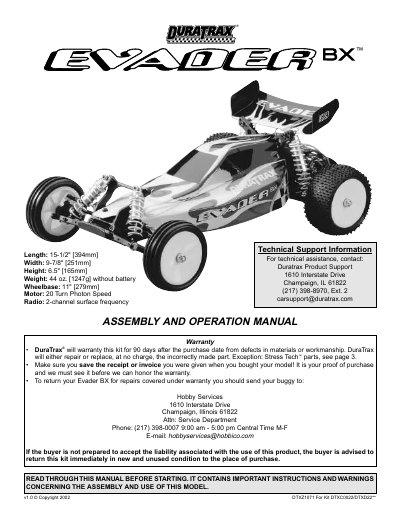

DuraTrax Evader BX Assembly and Operation Manual

This manual contains assembly and operation instructions for the DuraTrax® Evader BX, including important warnings and precautions to be followed during assembly and use.

Brand: Duratrax
Document type: User Manual
Language: English
Pages: 16
File format: PDF
File size: 2.2 MB
Published: 08 August, 2012
Updated: 30 September, 2023
MD5 checksum: E68567A0327017425BAD0C3232C2EBD7
PDF: DuraTrax Evader BX Assembly and Operation Manual PDF

About this manual

This manual provides instructions for assembling and operating the DuraTrax Evader BX radio-controlled buggy. It includes specific steps for both the kit version (DTXC0022) and the pre-built Ready-to-Run (RTR) version (DTXD22). The guide details how to install components such as the steering servo, receiver, electronic speed control, and battery pack.

What's inside

Warranty
Safety Precautions
Required Items
Tools Needed
Finishing RTR Version
Finishing Pre-Built Version
Preparing Radio System
Charging Battery
Steering Servo Installation
Maintenance Tips

Specifications

Length	15-1/2" [394mm]
Width	9-7/8" [251mm]
Height	6.5" [165mm]
Weight	44 oz.[1247g] without battery
Wheelbase	11" [279mm]
Motor Type	20 Turn Photon
Radio System	2-channel surface frequency

Frequently asked questions

What is the warranty period for DuraTrax Evader BX?

DuraTrax will warranty this kit for 90 days after the purchase date from defects in materials or workmanship.

What is the Stress-Tech parts guarantee?

DuraTrax will replace any broken Stress-Tech plastic part during the first 12 months of ownership.

What battery is required to operate the Evader BX?

A DuraTrax 6 cell battery pack (DTXC2065) is required.
