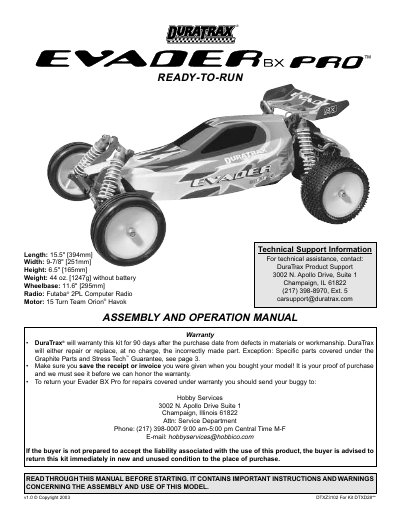

This manual provides instructions for assembling and operating the DuraTrax Evader BX Pro electric R/C buggy. It includes safety precautions, a list of required tools and additional items, and step-by-step assembly guides for the chassis, suspension, and electronics.
| Length | 15.5" [394mm] |
|---|---|
| Width | 9-7/8" [251mm] |
| Height | 6.5" [165mm] |
| Weight | 44 oz.[1247g] without battery |
| Wheelbase | 11.6" [295mm] |
| Radio | Futaba 2PL Computer Radio |
| Motor | 15 Turn Team Orion Havok |
| Input Power | 7.2 to 8.4 volts DC (6-7 cells) |
| Operating Frequency | 1.0 kHz |
| BEC | 5.0 volts / 1.0 amp |
| Max.Constant Current | 232 amps |
| Max.Peak Current | 800 amps |
DuraTrax will warranty this kit for 90 days after the purchase date from defects in materials or workmanship.
Required tools include a hobby knife, #11 blades, a #2 Phillips head screwdriver, needle nose pliers, hex wrenches, a turnbuckle wrench, and a nut driver.
DuraTrax will replace any Graphite or Stress-Tech part broken during the first 12 months of ownership for free.
Read instructions with the battery and charger before charging, do not leave the charger unattended, and disconnect immediately if the battery or charger becomes hot.
