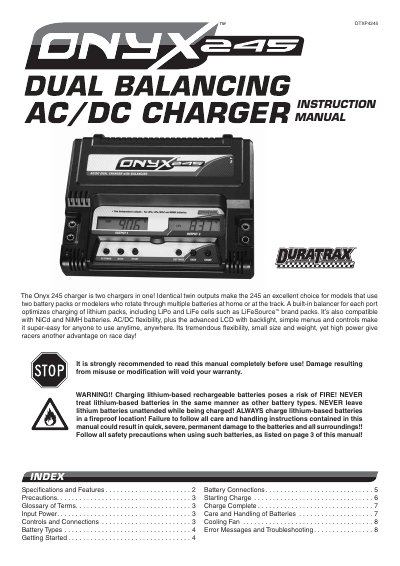

The Onyx 245 charger is two chargers in one! Identical twin outputs make the 245 an excellent choice for models that use two battery packs or modelers who rotate through multiple batteries at home or at the track. A built-in balancer for each port optimizes charging of lithium packs, including LiPo and LiFe cells such as LiFeSource™ brand packs. It’s also compatible with NiCd and NiMH batteries. AC/DC fl exibility, plus the advanced LCD with backlight, simple menus and controls make it super-easy for anyone to use anytime, anywhere. Its tremendous fl exibility, small size and weight, yet high power give racers another advantage on race day! It is strongly recommended to read this manual completely before use! Damage resulting from misuse or modifi cation will void your warranty. WARNING!! Charging lithium-based rechargeable batteries poses a risk of FIRE! NEVER treat lithium-based batteries in the same manner as other battery types. NEVER leave lithium batteries unattended while being charged! ALWAYS charge lithium-based batteries in a fi reproof location! Failure to follow all care and handling instructions contained in this manual could result in quick, severe, permanent damage to the batteries and all surroundings!! Follow all safety precautions when using such batteries, as listed on page 3 of this manual! INDEX Specifi cations and Features . . . . . . . . . . . . . . . . . . . . . . 2 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Gloss
The Duratrax Onyx 245 is a dual-output charger designed for models using two battery packs or for rotating through multiple batteries. It features identical twin outputs with built-in balancing for lithium packs (including LiPo and LiFe) and compatibility with NiCd and NiMH batteries. The unit offers AC/DC flexibility and includes an advanced LCD with backlight for easy operation.
| AC Input | 110V AC 60Hz |
|---|---|
| DC Input | 11-15V DC |
| Case Size | 7.95 x 6.1 x 1.77 inches |
| Weight | 28.2 oz. |
| NiCd/NiMH Capacity Range | 4-8 cells (4.8-9.6V) |
| LiPo/LiFe Capacity Range | 1-3 cells (3.3 – 11.1V) |
| Fast Charge Current | 0.8A, 1.5A, 3.0A, 5.0A |
| Lithium Balancing Accuracy | 5mV per cell |
Yes, it can be powered by a portable 12V DC power source using the included lead with alligator clips.
The maximum selectable fast charge current is 5.0A per output.
Yes, it has a built-in balancer for each port to optimize charging of lithium packs.
