This is a manual on how to assemble a model airplane. It explains how to cut the plastic parts from the master sheets, how to paint the model, and how to apply the decals

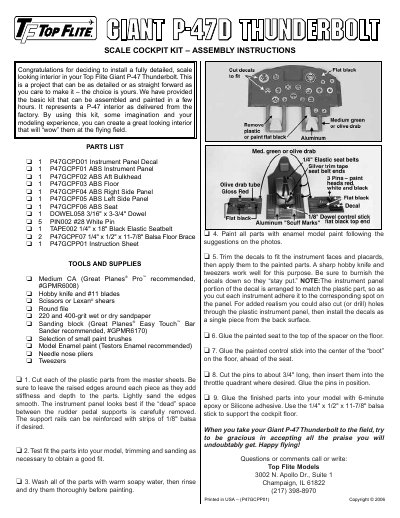

This document provides assembly instructions for a fully detailed scale cockpit interior kit designed for the Top Flite Giant P-47 Thunderbolt model aircraft. The kit includes ABS plastic instrument panels, floor sections, side panels, and seat components, along with decals and dowels.
The guide outlines the necessary tools and supplies required for installation, such as CA glue, hobby knives, sandpaper, and model enamel paints. It details a step-by-step process from cutting parts from master sheets to painting specific components like instrument panels, control sticks, and seatbelts before final assembly into the model.
The kit includes an instrument panel decal, ABS instrument panel, ABS aft bulkhead, ABS floor, ABS right and left side panels, ABS seat, a 3/16" x 3-3/4" dowel, a #28 white pin, 1/4" x 18" black elastic seatbelt, a 1/4" x 1/2" x 11-7/8" balsa floor brace, and an instruction sheet.
You need medium CA, a hobby knife with #11 blades, scissors or Lexan shears, a round file, 220 and 400-grit sandpaper, a sanding block, small paint brushes, model enamel paint, needle nose pliers, and tweezers.
Cut each part from the master sheets while leaving raised edges for stiffness, lightly sand the edges smooth, and wash them with warm soapy water before rinsing and drying.
