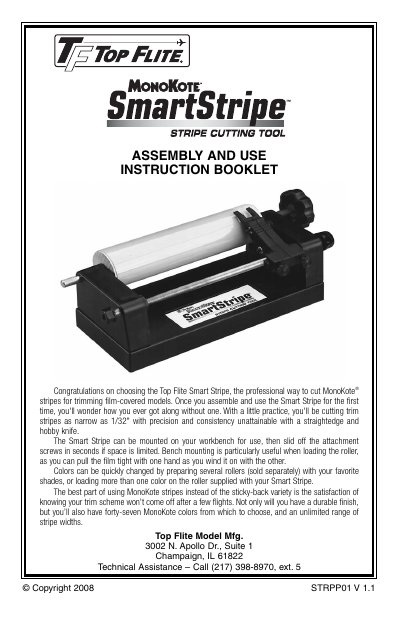

This is the instruction manual for Top Flite Smart Stripe, which mainly introduces the assembly and use of Smart Stripe.
The Top Flite Smart Stripe is a professional tool designed to cut MonoKote® stripes for trimming film-covered models with precision and consistency. It allows users to cut trimstripes as narrow as 1/32" and can be mounted on a workbench for easier roller loading or used portably.
| Minimum Cut Width | 1/32" |
|---|---|
| Mounting Distance | 6-7/16" |
| Pilot Hole Size | 1/8" |
| Blade Type | #11 Blade |
Yes, the assembly can be adjusted for left-handed operation by switching the position of the knobs, hex nut, and dead pin.
It does not need to be mounted permanently, but mounting it to the workbench helps when loading the roller.
Wind the MonoKote across the roller about 1/32" per rotation so that one edge is staggered like shingles toward the center of the roll.
