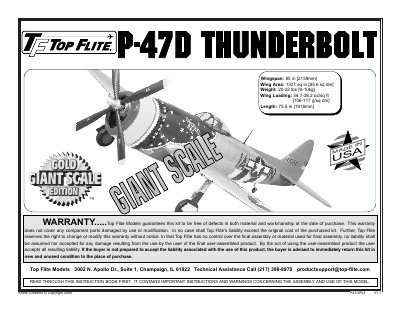

This document provides warranty information and disclaimers from Top Flite Models. The warranty covers defects in material and workmanship, but not component parts damaged by use or modification. Top Flite is not liable for any damage resulting from the use of the user-assembled product.
This manual provides comprehensive instructions for assembling the Top Flite 3002 P-47 Thunderbolt, a 1/6th scale giant model airplane. It covers essential decisions such as engine selection (34.5-45cc glow or 41-70cc gasoline), radio system requirements (high-torque servos), and configuration options like canopy type. The guide details the construction of tail surfaces, fuselage, wings, and control systems, emphasizing the use of specific tools and adhesives.
| Wingspan | 85 in [2159mm] |
|---|---|
| Wing Area | 1327 sq in [85.6 sq dm] |
| Weight | 20-22 lbs [9-10kg] |
| Wing Loading | 34.7-38.2 oz/sq ft [106-117 g/sq dm] |
| Length | 75.5 in [1918mm] |
| Recommended Glow Engine | 34.5 - 45cc (2.1 - 2.8 cu. in.) |
| Recommended Gasoline Engine | 41 - 70cc (2.5 - 4.2 cu. in.) |
| Minimum Receiver Battery | 1000 mAh |
The recommended engine size is 34.5 - 45cc for glow engines or 41 - 70cc for gasoline engines.
The minimum capacity of a receiver battery pack required for this model is 1000 mAh.
