This is an aircraft model, the brand is Top Flite, and the model is Top Flite® Models.

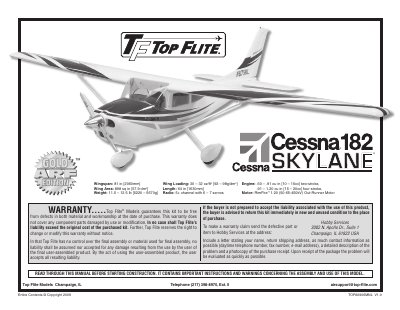

The Top Flite Cessna 182 ARF is a pre-painted, partially assembled radio-controlled model airplane designed for scale flight. This manual guides the user through the remaining assembly steps, including installing control surfaces, the power system, and the cockpit. It emphasizes that while the airframe is pre-built, the final assembly and operation require careful attention to safety and correct component installation.
| Wingspan | 81 in [2060mm] |
|---|---|
| Wing Area | 898 sq in [57.9 dm2] |
| Weight | 11.5 – 12.5 lb [5220 – 5670g] |
| Wing Loading | 30 – 32 oz/ft2 [92 – 98g/dm2] |
| Length | 64 in [1630mm] |
| Radio Requirement | 5+ channel with 6 – 7 servos |
| Engine Recommendation (2-stroke) | .60 – .91 cu in [10 – 15cc] |
| Engine Recommendation (4-stroke) | .91 – 1.20 cu in [15 – 20cc] |
A 6-channel radio system with a standard receiver and six standard size servos with a minimum torque of 44 oz-in is required.
A .60 to .91 cu in two-stroke or .90 to 1.20 cu in four-stroke engine is recommended for scale flight.
Yes, due to its 81-inch wingspan, the model is eligible to be entered at IMAA events.
Users must wear safety goggles, a particle mask, and rubber gloves when grinding, drilling, or sanding fiberglass parts.
