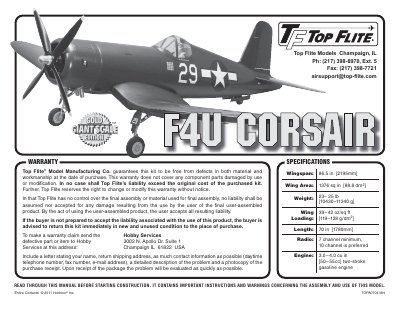

Top Flite F4U Corsair ARF Assembly and Operation Manual

This document provides technical specifications and features of a model airplane called Top Flite.

Brand: Top
Document type: User Manual
Language: English
Pages: 48
File format: PDF
File size: 2.8 MB
Published: 07 August, 2012
Updated: 28 September, 2023
MD5 checksum: 2D77691D45EBBE80A992E45B6A442124
PDF: Top Flite F4U Corsair ARF Assembly and Operation Manual PDF

About this manual

This manual provides comprehensive instructions for assembling the Top Flite F4U Corsair, a classic World War II warbird model. It covers fuselage construction, wing assembly, installation of retractable landing gear and control systems, and engine setup. The document emphasizes safety precautions regarding fiberglass parts and radio equipment requirements.

What's inside

Introduction
Important Safety Precautions
Decisions You Must Make
Additional Items Required
Kit Inspection
Assemble the Fuselage
Install the Main Landing Gear
Radio Installation
Preflight Checklist
Flying

Specifications

Weight	23-25 lb [10430-11340 g]
Engine	3.0-4.0 cu in [50-55 cc] two-stroke gasoline engine
Radio Channels	7 channel minimum, 10 channel is preferred

Frequently asked questions

What engine size is recommended for the Top Flite F4U Corsair?

A two-stroke gasoline engine with a displacement of 3.0 to 4.0 cubic inches (50-55 cc) is recommended.

What safety gear should be worn when working on the kit?

Users must wear safety goggles, a particle mask, and rubber gloves when grinding, drilling, or sanding fiberglass parts.
