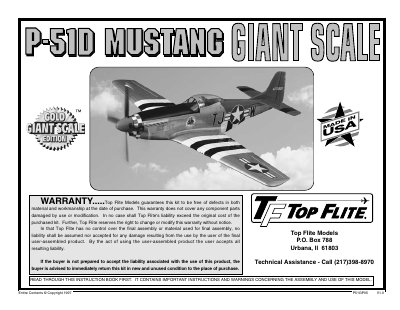

Top Flite P-51GP05 Giant Scale P-51D Mustang Assembly Manual

This manual introduces the assembly and use of the P51GP05 model.

Brand: Top
Document type: User Manual
Language: English
Pages: 60
File format: PDF
File size: 2.4 MB
Published: 07 August, 2012
Updated: 30 September, 2023
MD5 checksum: C1F9502C13FFA2E978586CFB7E848364
PDF: Top Flite P-51GP05 Giant Scale P-51D Mustang Assembly Manual PDF

About this manual

This manual provides comprehensive instructions for assembling the Top Flite P-51GP05, a giant scale model of the P-51D Mustang. It covers safety precautions, required tools and materials, engine selection (30-45cc glow or 30-60cc gasoline), and radio system requirements including servo specifications.

What's inside

Introduction
Precautions
Engine Selection
Radio System Requirements
Building Supplies & Tools
Die-Cut Patterns
Build the Tail Surfaces
Build the Wing
Build the Fuselage
Finishing and Painting

Specifications

Recommended Engine Size (Glow)	30 - 45cc displacement
Recommended Engine Size (Gasoline)	30 - 60cc displacement
Minimum Servo Count	10 servos
Minimum Servo Torque	45 inch/ounces
Wingspan	84-1/2"

Frequently asked questions

What engine size is recommended for this model?

The manual recommends a 30-45cc glow engine or a 30-60cc gasoline engine.

How many servos are required for the radio system?

The model requires a minimum of 10 servos to operate correctly.

What is the wingspan of this aircraft?

The Top Flite P-51D has a wingspan of 84-1/2 inches.
