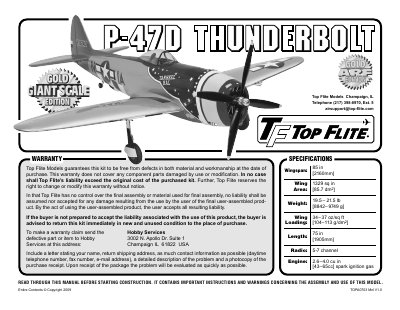

This manual is an assembly and usage instruction, containing important guidelines and warnings. The product is provided by Top Flite Models and is guaranteed to be free from defects at the time of purchase. The warranty does not cover component parts damaged by use or modification. Top Flite Models is not liable for any damage resulting from the user's assembly and use of the product. By using the user-assembled product, the user accepts all liability. If the buyer is not willing to accept the liability, it is advised to return the kit immediately. To make a warranty claim, the defective part or item should be sent to Hobby Services along with a letter stating the problem and a photocopy of the purchase receipt. Top Flite Models reserves the right to change or modify the warranty without notice.
This manual provides comprehensive instructions for assembling the Top Flite Giant P-47D ARF, a large-scale model aircraft. It covers all construction steps from joining the wings and fuselage to installing the engine, retractable landing gear, and radio equipment. The document also includes essential safety precautions for handling fiberglass parts and operating the model.
| Wingspan | 85 in [2160mm] |
|---|---|
| Wing Area | 1329 sq in [85.7 dm2] |
| Weight | 19.5 – 21.5 lb [8842–9749 g] |
| Wing Loading | 34– 37 oz/sq ft [104–113 g/dm2] |
| Length | 75 in [1905mm] |
| Radio | 5-7 channel |
| Engine | 2.6–4.0 cu in [43–65cc] spark ignition gas |
The manual recommends a spark-ignition gas engine in the range of 2.6–4.0 cu in [43–65cc].
The wingspan of the model is 85 inches.
The recommended weight range is 19.5 to 21.5 pounds.
The recommended engine size is between 2.6 and 4.0 cubic inches.
