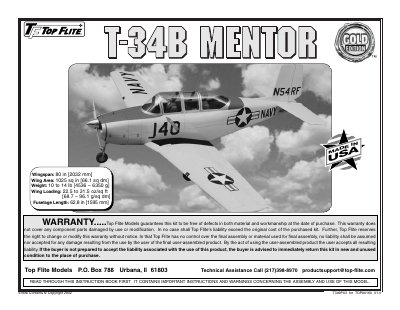

Top Flite TOPA0160 V1.0 Beechcraft T-34B Mentor Assembly Manual

This manual provides a detailed description of the assembly and operation of the Top Flite 150 model airplane

Brand: Top
Category: Other
Document type: User Manual
Language: English
Pages: 66
File format: PDF
File size: 125 KB
Published: 07 August, 2012
Updated: 30 September, 2023
MD5 checksum: D7D93F1A371A2E90AAEA2773540EDA11
PDF: Top Flite TOPA0160 V1.0 Beechcraft T-34B Mentor Assembly Manual PDF

About this manual

This manual provides step-by-step instructions for assembling the Top Flite TOPA0160 V1.0 Beechcraft T-34B Mentor, a large-scale R/C model airplane. It covers the construction of tail surfaces, wings, fuselage, and the installation of the engine and landing gear. The guide also details finishing techniques, including painting, decal application, and covering with MonoKote film.

What's inside

Warranty
Introduction
Precautions
Engine Selection
Building the Tail Surfaces
Building the Wing
Building the Fuselage
Mounting the Engine
Finishing Construction
Preflight and Flying

Specifications

Wingspan	80 in [2032 mm]
Wing Area	1025 sq in [66.1 sq dm]
Weight	10 to 14 lb [4536 – 6350 g]
Wing Loading	22.5 to 31.5 oz/sq ft [68.7 – 96.1 g/sq dm]
Fuselage Length	62.8 in [1595 mm]

Frequently asked questions

What is the wingspan of the Top Flite T-34B Mentor?

The wingspan is 80 inches (2032 mm).

What is the recommended weight range for the model?

The recommended weight range is 10 to 14 pounds (4536 – 6350 g).

Does the kit include a full cockpit interior?

No, the full cockpit interior is a scale accessory available separately.
