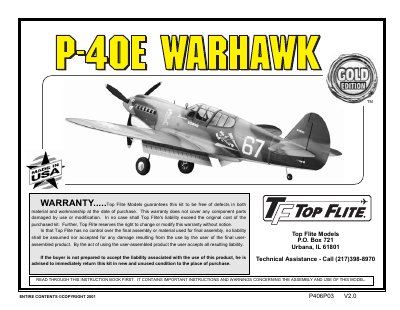

Top Flite P-40E Warhawk Assembly and Operation Manual

This document mainly introduces the use of Top Flite P406P03 V2.0 model, precautions and related warning information.

Brand: Top
Document type: User Manual
Language: English
Pages: 56
File format: PDF
File size: 1.8 MB
Published: 07 August, 2012
Updated: 30 September, 2023
MD5 checksum: 4A019324C2B2D85C95BBC9DB203E1B36
PDF: Top Flite P-40E Warhawk Assembly and Operation Manual PDF

About this manual

This manual provides comprehensive instructions for building the Top Flite Gold Edition P-40E Warhawk scale model aircraft. It covers all construction steps from die-cut patterns to final assembly, including specific guidance on engine selection (such as O.S. .61 SF or 1.20 Surpass), retract installation, and wing sheeting.

What's inside

Introduction
Precautions
Engine and Mount Selection
Retracts
Wheel Selection
Build the Horizontal Stabilizer
Build the Wing
Build the Fuselage
Finishing
Preflight

Specifications

Scale Ratio	1:6.9
Recommended Engine Size (2-cycle)	.60 to .91 cu. in.
Recommended Engine Size (4-cycle)	.90 to .120 cu. in.
Scale Tire Size	4-5/8"

Frequently asked questions

What engines are recommended for the P-40E Warhawk?

Recommended engines include the O.S. .61 SF (2c) and O.S. 1.20 Surpass (4c). The kit is designed to house an O.S. 1.20 Surpass.

What are the recommended engine sizes for this model?

The recommended engine size range is .60 to .91 cu. in. for 2-cycle engines and .90 to .120 cu. in. for 4-cycle engines.

What are the true scale tire sizes for this aircraft?

The true scale tire size is 4-5/8".

Download PDF (1.8 MB)
