This document provides information about HudraCat HYDl?A&#ASREZ. Corporation I 1 I I1319W HydraMaster Corp., including general information, operating instructions, and precautions. It covers topics such as system operation, spare parts recommendation, machine specifications, warnings and cautions, ordering and parts orders. The document also provides detailed guides on vehicle installation, chemical system maintenance, vacuum system information, heating system information, and operation and maintenance of Cat Pump.

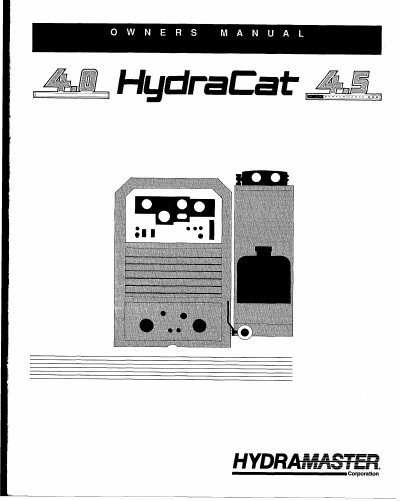

This document serves as the owner's manual for the HydraMaster HydraCat, a truck-mounted carpet cleaning plant. It details how the system works, including the water, vacuum, chemical, and heating systems, and provides specific instructions for operating the unit and its components like the Cat Pump Model 290 and Onan Performer engine.
The guide covers installation procedures, spare parts recommendations, and comprehensive maintenance logs. It also includes troubleshooting guides for various systems, electrical diagrams, and warranty information to assist owners in maintaining the equipment for profitable, trouble-free operation.
| Frame Dimensions | 23" W, 59" L, 34" H |
|---|---|
| Weight (HydraCat 4.0) | 630 lbs (dry weight) |
| Weight (HydraCat 4.5) | 750 lbs (dry weight) |
| Engine (HydraCat 4.0) | P220 20 BHP Onan |
| Engine (HydraCat 4.5) | P224 24 BHP Onan |
| High-Pressure Pump | Tri-Plex piston -- Cat 290 - 3.5 GPM ~ 1200 PSI |
| Heater BTU | 180,000 BTU |
| Recovery Tank Capacity | 70 gallon aluminum |
The manufacturer recommends purchasing and keeping spare parts such as the flow meter kit, wand valve plunger kit, and recovery tank filter bags in the truck.
Call the HydraMaster Warranty/Service Department at (206) 775-7275 and provide specific unit information including the serial number and description of the malfunction.
The warranty covers defective materials and/or workmanship, but specifically excludes labor and diagnostic reimbursement.
