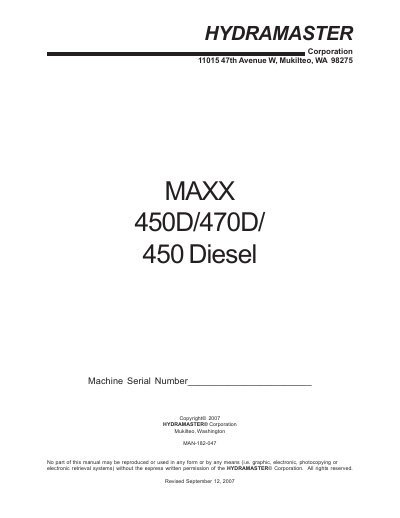

This document is the user manual for HYDRAMASTER Corporation MAXX 450D/470D/450 Diesel machine, which introduces the features and characteristics of the machine, including system operation, machine specifications, spare parts recommendation, responsibility, vehicle preparation, high altitude operation preparation, local water precautions, waste water disposal advice, machine assembly and parts lists.
The document serves as a comprehensive guide for the operation and upkeep of the HydraMaster MAXX series diesel-powered water treatment units. It covers essential topics including system preparation, start-up and shut-down procedures, freeze protection measures, and waste disposal advice.
Detailed sections are dedicated to specific machine assemblies such as the high-pressure pump, vacuum system, blower, engine, and electrical systems. The manual includes wiring diagrams, flow charts for fuel and chemical systems, cleaning wand assembly drawings, and step-by-step maintenance schedules ranging from weekly checks to quarterly descaling.
| Product Name | MAXX 450D/470D/450 Diesel |
|---|---|
| Document Revision Date | September 12, 2007 |
The document contains a dedicated section providing specific preparation steps required when operating the unit at high altitudes.
The universal recovery tank assembly holds 100 gallons.
