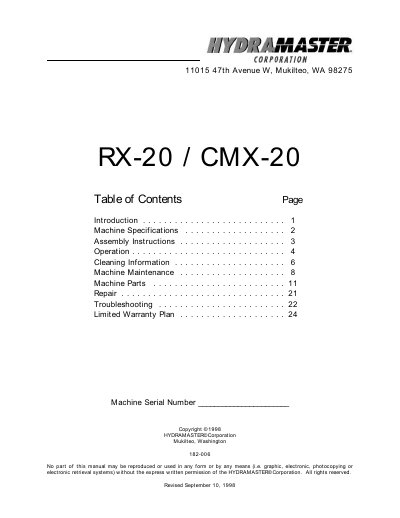

This manual introduces the features and characteristics of RX-20 / CMX-20
This manual provides instructions for the HydraMaster RX-20 and CMX-20, high-speed carpet cleaning machines designed to increase productivity and reduce operator fatigue. The RX-20 features a rotary motion driven by an electric motor, while the CMX-20 is a high-speed variant. Both units utilize a precision transmission to rotate the star assembly and inject cleaning solution directly to spray jets.
| Length | 27" (RX-20) / 23" (CMX-20) |
|---|---|
| Base Width | 15" |
| Height | 45" (RX-20) / 43" (CMX-20) |
| Weight | 75 Ibs. (RX-20) / 70 Ibs. (CMX-20) |
| Motor Voltage | 115 V |
| Gearbox Input RPM | 1725 RPM |
| Gearbox Output RPM | 90 RPM (RX-20) / 130 RPM (CMX-20) |
| Oil Capacity | 14 oz. |
Most technicians find better control and less fatigue when the handle is in a low position just around the hip line.
No, you should not operate the RX-20 on hard wood floors as it can cause damage.
Use an overlapping arc pattern three times over the same area, consisting of two passes with solution and one pass for drying.
