This document introduces the characteristics and features of the Hydra-Cat water treatment system, including the working principle of the system, specifications, spare parts recommendations, ordering methods, installation precautions, etc.

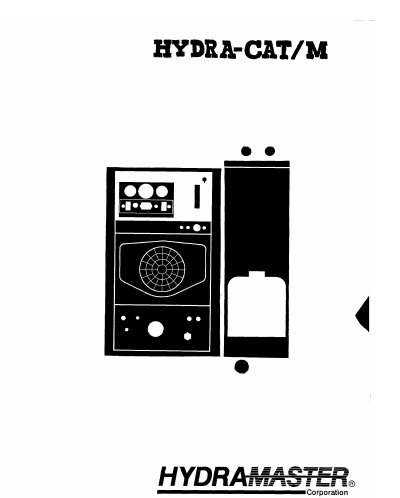

The Hydra-Cat HYDRA-CAT/M is a truck-mounted carpet cleaning plant designed to perform multiple functions simultaneously, including vacuuming, water injection, chemical proportioning, and heating. The system works by taking incoming water, combining it with chemicals, pumping it under high pressure through a heating system, and extracting the dirty solution via a vacuum system into a recovery tank.
This document covers general information, machine specifications, truck preparation, and detailed operating instructions. It also includes specific service guides for the Kohler and Onan engines, the Cat 290 pump, and the vacuum blower, along with troubleshooting guides for various components.
| Frame Dimensions | 21"W, 56"L, 34"H |
|---|---|
| Weight | 800 pounds |
| Engine (M/Series) | 20 BHP Kohler M20 Electronic Ignition |
| Vacuum Blower | 4MF Sutorbuilt W/14 Hg Safety Relief |
| Heater Output | 180,000 BTU |
It is a truck-mounted carpet cleaning plant that performs multiple functions simultaneously, such as vacuuming, water injection, and chemical proportioning.
The manufacturer recommends keeping a Flow Meter Kit, Wand Valve Plunger Kit, Pressure Bypass Valve Kit, and Engine Spark Plugs in the truck.
